Adjustable yoke ends (also called "clevis ends") are typically assembled to the end of a rod, pipe, tube or cable linkage and are then attached via a clevis pin to a mounting point. Includes pins -- also called clevises. 316-NM Non-Magnetic Stainless Steel
![[]](/images/1.gif){kind=small}
|
|

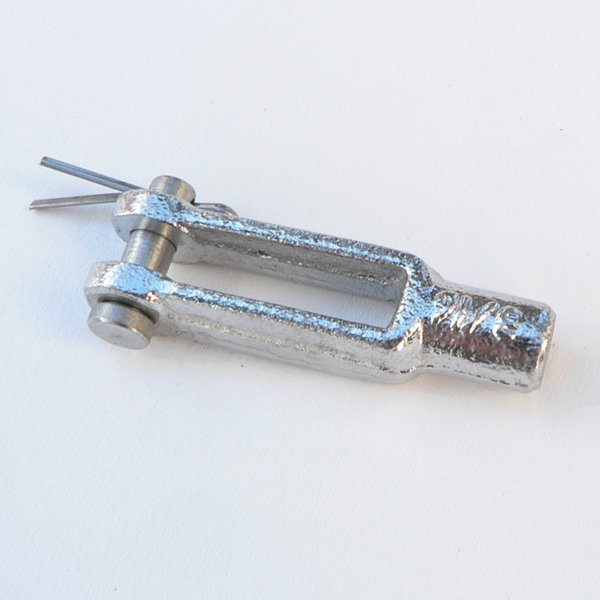

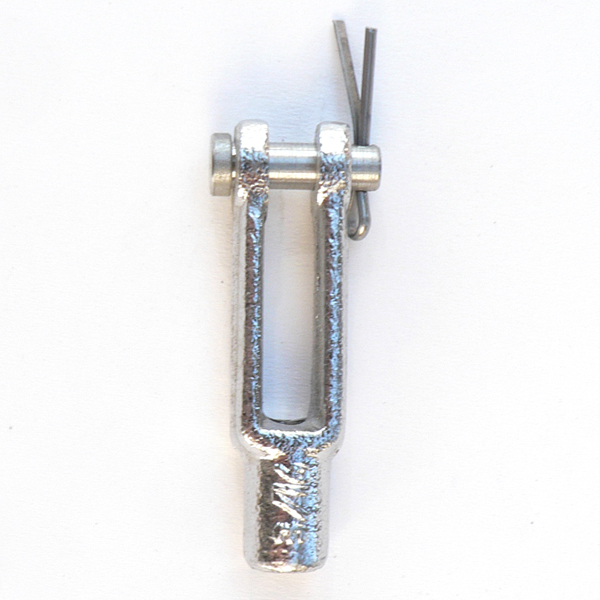

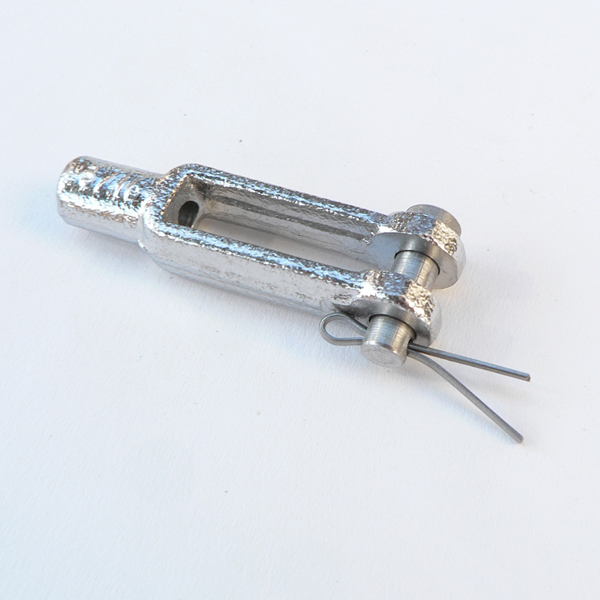

Yoke End, Unthreaded
|
|
|
||||||||||||||||||||||||||||||||||||
![[]](/images/gray_speck.gif){kind=small}
![[]](/images/grayScroll.gif){kind=small}
![[]](/images/grayScroll2.gif){kind=small}
Learn More: Product Details | Dimensions
|
ITEM | A | B | C | D | E | WLL |
|---|---|---|---|---|---|---|---|
| S0113-U005 | 3/16" | 0.19" | 1.56" | 0.31" | 0.44" | 300 | |
| S0113-U007 | 1/4" | 0.25" | 2.00" | 0.44" | 0.63" | 500 | |
| S0113-U008 | 5/16" | 0.31" | 2.25" | 0.50" | 0.75" | 800 | |
| S0113-U010 | 3/8" | 0.38" | 2.55" | 0.63" | 0.88" | 1,200 | |
| S0113-U013 | 1/2" | 0.50" | 3.00" | 0.81" | 1.13" | 2,200 | |
| S0113-U016 | 5/8" | 0.63" | 4.94" | 1.06" | 1.38" | 3,500 | |
| S0113-U020 | 3/4" | 0.75" | 6.06" | 1.25" | 1.63" | 5,200 |
DETAILS
- 316 Stainless Steel, Forged
- Manufactured by Suncor Stainless
$30 minimum order required
