Forged Wire Rope Clips are used in combination with wire rope and a thimble to make a secure wire loop. These are high quality clips, precision cast from 304 stainless.
Note: i/a/w federal specification ff-c-450d, type 1. (Except 316 stainless, drop forged)
![[]](/images/1.gif){kind=small}
|
|

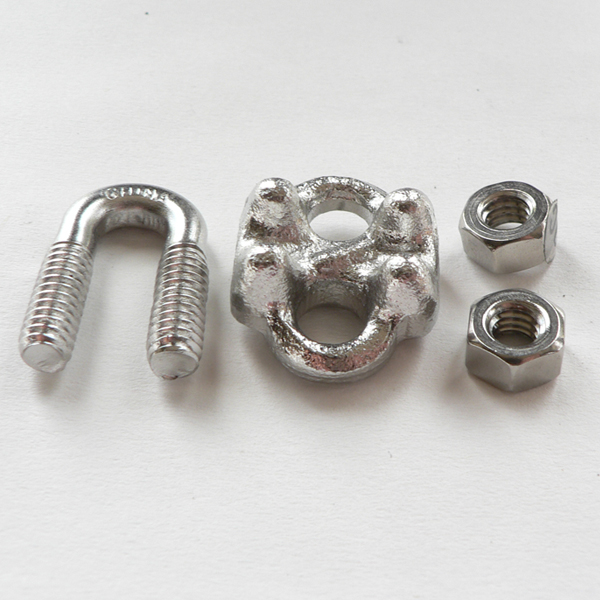

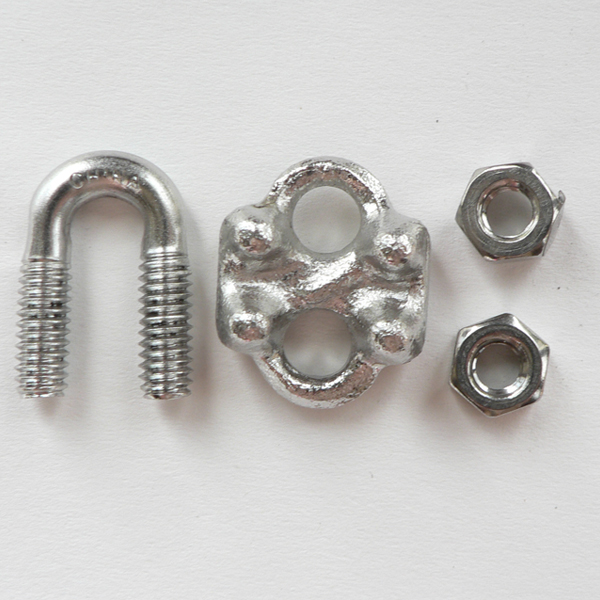

Forged Wire Rope Clips
Model: S0122-00xx
![[]](/images/gray_speck.gif){kind=small}
|
|
|
||||||||||||||||||||||||||||||||||||
![[]](/images/grayScroll.gif){kind=small}
![[]](/images/grayScroll2.gif){kind=small}
Learn More: Product Details | Dimensions
|
ITEM | A | B | C | D | E | WT |
|---|---|---|---|---|---|---|---|
| S0122-0003 | 1/8" | 0.21" | 0.50" | 0.80" | 0.92" | 0.06 | |
| S0122-0005 | 3/16" | 0.24" | 0.62" | 0.95" | 1.15" | 0.10 | |
| S0122-0007 | 1/4" | 0.30" | 0.75" | 1.18" | 1.46" | 0.20 | |
| S0122-0008 | 5/16" | 0.36" | 0.78" | 1.33" | 1.66" | 0.28 | |
| S0122-0010 | 3/8" | 0.43" | 0.82" | 1.56" | 1.90" | 0.44 | |
| S0122-0013 | 1/2" | 0.48" | 1.05" | 1.90" | 2.28" | 0.71 | |
| S0122-0016 | 5/8" | 0.54" | 1.28" | 2.05" | 2.48" | 1.00 | |
| S0122-0020 | 3/4" | 0.62" | 1.50" | 2.24" | 2.83" | 1.48 | |
| S0122-0025 | 1" | 0.68" | 1.90" | 2.59" | 3.47" | 2.55 |
DETAILS
- 316-NM Non-Magnetic Stainless Steel
$30 minimum order required
