9Star

Model: S0809-0000

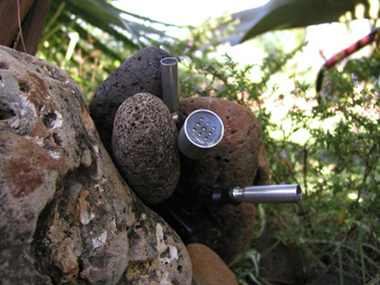

316 stainless steel housing with loc-line stalk - nine LEDs!

Quantity pricing discounts 10+ items 5% off, 25+ items 10% off, 100+ items, 15% off. Discounts reflected in shopping cart.

[]
[]
[] []
[] []
Dimensions
See our dimensions table to find the correct size of this part.
[]
[]
[] []
[] []
Installation
See the Learning Center for more information on how to use and install this product.
[]
[] []
[]
Quantity Discounts
Most parts ordered in quantity will be automaticaly discounted in your cart. 10+ items 5% off, 25+ items 10% off, 100+ items, 15% off. For larger orders get great pricing by contacting us.


S0809-0000 Microstar 9-Star 12vwhite $39.60 /Assembly
S0809-0002 Microstar 9-Star 24vwhite $56.44 /Assembly
S0809-000r Microstar 9-Star 12v red $30.73 /Assembly
S0809-000y Microstar 9-Star 12v yellow $30.73 /Assembly
S0809-002y Microstar 9-Star 24v yellow $82.56 /Each
S0809-1040 Microstar 9-Star +Stalk (4 segments) 12v White $48.36 /Assembly
S0809-1080 Microstar 9-Star +Stalk (8 segments) 12v White $53.40 /Assembly
S0809-1120 Microstar 9-Star +Stalk (12 segments) 12v White $59.16 /Assembly
S0809-112r Microstar 9-Star +Stalk (12 segments) 12v Red $56.02 /Assembly
S0809-112y Microstar 9-Star +Stalk (12 segments) 12v Yellow $56.02 /Assembly
S0809-2080 Ninestar 24v White +Stalk (8 segments) $88.19 /Each
In Stock - Usually ships in 1-2 business days.
Learn More:  Product Details | Dimensions

DETAILS

  • 9star consists of 9 LED's; wired in series/ parallel circuit (3/3) potted with epoxy in stainless steel housing
  • Current draw: 32 mA @ 12 VDC 44 mA@ 13 VDC
  • Life expectancy of LED can be up to 100,000 hours
  • The stainless housing has an OD of 1" and a length of 1.75 inches

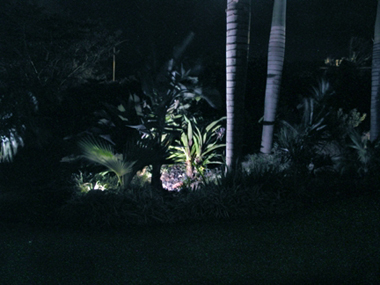

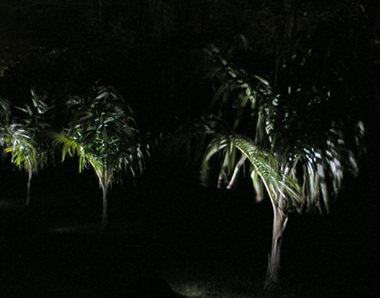

  • This LED light is ideal for applications requiring a fair amount of light: porches, walk ways, balconies, tall trees and large expanses of landscape.
  • The Fixture is waterproof and submersible.
  • 70 deg. Beam
  • Housing machined from solid bar of 316 stainless steel.
  • Requiring 12 VDC and with low power consumption, this LED light is ideally suited for battery and solar power supplies. A small 110 VAC to 12 VDC transformer may also be used. A 500 milli-amp transformer will power 10 of these lights at a household consumption of less than 10 watts
  • With a 24 VDC power supply, two of these lights may be wired in series.
  • If the power supply is 12 VAC as many low voltage landscape lighting power supplies are, it is recommended that an inexpensive bridge rectifier is placed in the circuit ahead of any LED lights. See Power Supply Tips.
  • Note: although the LEDs generate negligible heat, the current limiting resistors used in the circuits do generate some heat. In the case of the 9star, containing three resistors, enough heat is generated to cause the stainless housing to be warm to the touch (typically 100 to 110 degrees F). This should be taken into consideration if the 9star is placed in contact with delicate materials or plants.
  • Requiring 12 VDC and with low power consumption, this LED light is ideally suited for battery and solar power supplies. A small 110 VAC to 12 VDC transformer may also be used. A 500 milli-amp transformer will power 23 of these lights at a household consumption of less than 10 watts
  • Lead connections and wiring: Although this light is waterproof, the type and method of connecting the leads will effect the overall integrity of the system and its ability to survive harsh environments. See wiring tips.
  • Luminous Intensity - 12 to 19.8 (11.6 - 14.6 VDC) cd Approximately equivalent to a 10 to 15 watt incandescent bulb (This light puts out a bright white light with a hint of blue; much like moonlight).
  • Lead connections and wiring: Although this light is waterproof, the type and method of connecting the leads will effect the overall integrity of the system and its ability to survive harsh environments. See wiring tips.
  • Leads: 18" long, 22 gauge, tinned stranded leads
  • Weight: 2.5 oz.
  • Please read our Handling and Installation Caution.
  • Made in the USA.
[]
