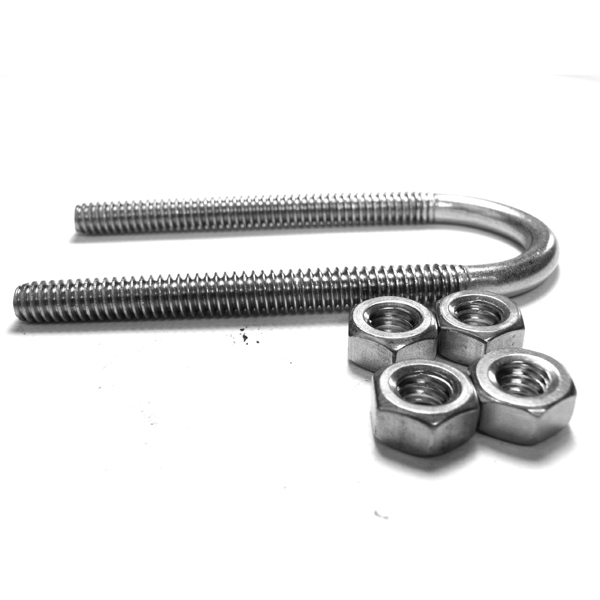

Long U-Bolt

Model: S0352-xxxx

These are the highest quality Long U-Bolt s on the market. Formed from 304 Stainless, these are functional, useful and strong parts. Each set comes with four nuts.

See also: Square U-Bolt, Standard U-Bolt, and U-Bolt with Plate.
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[]
[] []
[] []
Quantity Discounts
Most parts ordered in quantity will be automaticaly discounted in your cart. 10+ items 5% off, 25+ items 10% off, 100+ items, 15% off. For larger orders get great pricing by contacting us.
[]


S0352-07013 Long U-Bolt 1/4 X 1/2 X 2-15/16 $4.90 /Each
S0352-07020 Long U-Bolt 1/4 X 3/4 X 3-3/16 $5.04 /Each
S0352-07025 Long U-Bolt 1/4 X 1 X 3-7/16 $5.25 /Each
S0352-10032 Long U-Bolt 3/8 X 1-1/4 X 3-1/4 $8.69 /Each
S0352-10038 Long U-Bolt 3/8 1-1/2 X 4 $9.13 /Each
S0352-10050 Long U-Bolt 3/8 2 X 4-7/16 $9.74 /Each
S0352-13065 Long U-Bolt 1/2 2-1/2 X 5-1/4 $19.80 /Each
S0352-13075 Long U-Bolt 1/2 3 X 5-3/4 $21.18 /Each
S0352-13090 Long U-Bolt 1/2 3-1/2 X 6-1/4 $22.44 /Each
S0352-13100 Long U-Bolt 1/2 4 X 6-3/4 $23.71 /Each
S0352-13125 Long U-Bolt 1/2 5 X 7-13/16 $26.46 /Each
S0352-16150 Long U-Bolt 5/8 6 X 9-1/2 $48.27 /Each
S0352-16200 Long U-Bolt 5/8 8 X 11-1/8 $56.06 /Each
S0352-20250 Long U-Bolt 3/4 10 X 13-3/8 $102.76 /Each
S0352-22300 Long U-Bolt 7/8 12 X 16-1/16 $164.14 /Each
S0352-22350 Long U-Bolt 7/8 14 X 17-5/16 $173.86 /Each
S0352-22400 Long U-Bolt 7/8 16 X 19-5/16 $190.91 /Each
In Stock - Usually ships in 1-2 business days.
Learn More:  Product Details | Dimensions
[]
DIMENSIONS
part diagram Part # A Thread B C D Pipe WLL
S0352-07013 1/4" 1/4-20 0.88" 2.50" 2.94" 1/2" 435 lb
S0352-07020 1/4" 1/4-20 1.13" 2.50" 3.19" 3/4" 435 lb
S0352-07025 1/4" 1/4-20 1.38" 2.50" 3.44" 1" 435 lb
S0352-10032 3/8" 3/8-16 1.69" 2.38" 3.72" 1-1/4" 1090 lb
S0352-10038 3/8" 3/8-16 2.00" 2.50" 4.00" 1-1/2" 1090 lb
S0352-10050 3/8" 3/8-16 2.44" 2.50" 4.44" 2" 1090 lb
S0352-13065 1/2" 1/2-13 2.94" 3.00" 5.22" 2-1/2" 2020 lb
S0352-13075 1/2" 1/2-13 3.56" 3.00" 5.75" 3" 2020 lb
S0352-13090 1/2" 1/2-13 4.06" 3.00" 6.25" 3-1/2" 2020 lb
S0352-13100 1/2" 1/2-13 4.56" 3.00" 6.75" 4" 2020 lb
S0352-13125 1/2" 1/2-13 5.63" 3.00" 7.81" 5" 2020 lb
S0352-16150 5/8" 5/8-11 6.75" 3.75" 9.69" 6" 3230 lb
S0352-16200 5/8" 5/8-11 8.75" 3.75" 11.50" 8" 3230 lb
S0352-20250 3/4" 3/4-10 10.88" 4.00" 13.88" 10" 4830 lb
S0352-22300 7/8" 7/8-9 12.88" 4.25" 16.13" 12" 6730 lb
S0352-22350 7/8" 7/8-9 14.13" 4.25" 17.50" 14" 6730 lb
S0352-22400 7/8" 7/8-9 16.13" 4.25" 19.25" 16" 6730 lb

DETAILS

  • 304 Stainless Steel, Formed
[]
