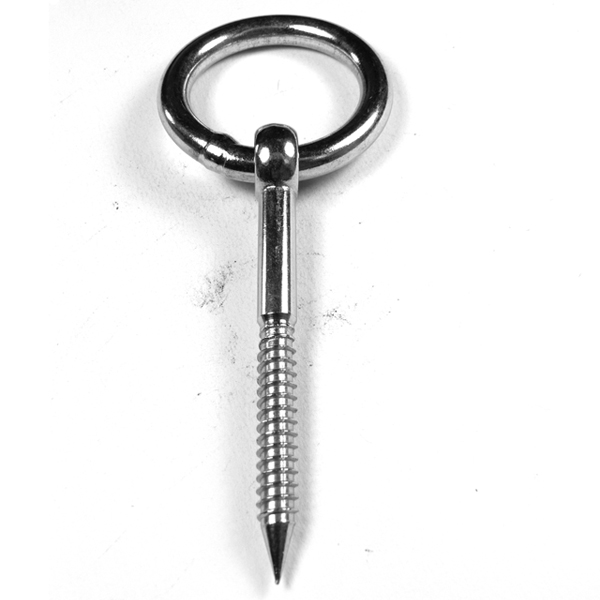

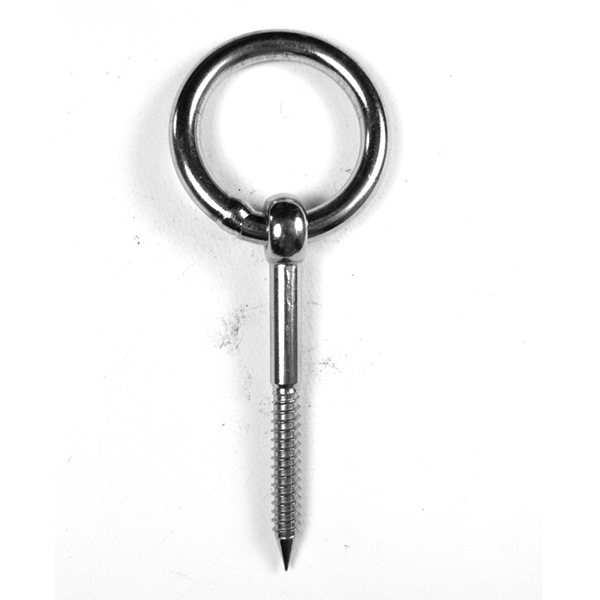

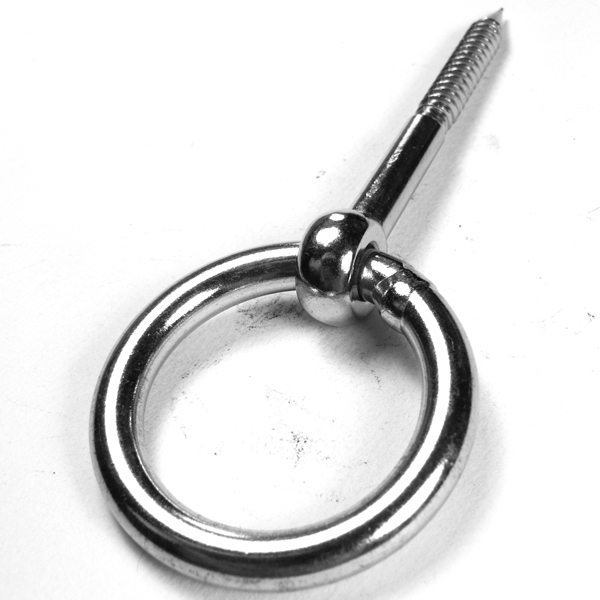

Lag Ring Bolt

Model: S0329-000x

This is a useful termination and point of attachment which can be installed in wood (especially redwood) and concrete or mortar when accompanied with an appropriate insert. Tethers, chain assemblies and plant hangers can be attached to these.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[]
[] []
[] []
Quantity Discounts
Parts ordered in quantity will be automatically discounted in your cart: 10+ = 5% off, 25+ = 10% off, 100+ = 15% off.
[]


S0329-0007 Lag Ring Bolt 1/4 $6.04 /Each
S0329-0008 Lag Ring Bolt 5/16 $9.09 /Each
S0329-0010 Lag Ring Bolt 3/8 $14.73 /Each
S0329-0013 Lag Ring Bolt 1/2 $25.14 /Each
Quantity Pricing Reflected in Shopping Cart!
Learn More:  Product Details | Dimensions
[]
DIMENSIONS
part diagram ITEM A B C D E WT
S0329-0007 1/4" 1.50" 2.25" 1.20" 2.75" 0.12
S0329-0008 5/16" 1.50" 2.25" 2.00" 3.00" 0.22
S0329-0010 3/8" 2.13" 3.13" 2.40" 3.86" 0.41
S0329-0013 1/2" 3.25" 4.75" 2.94" 5.65" 0.76

DETAILS

[]

$30 minimum order required
