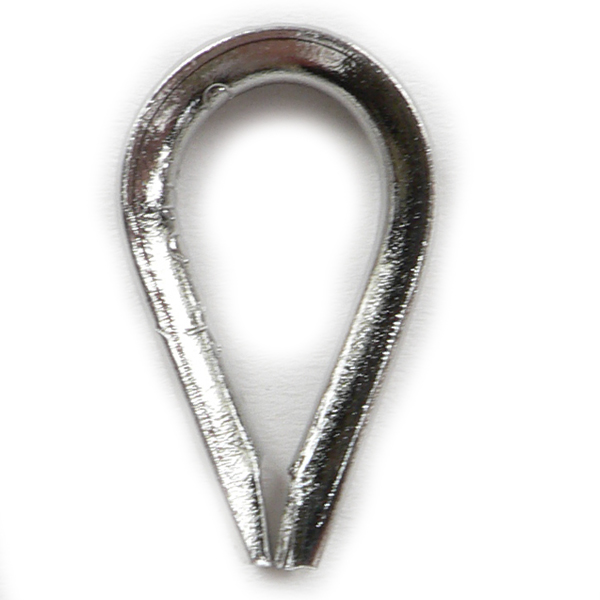

Heavy Duty Miltary Spec. Thimble

Model: S0124-ANxx

Heavy Duty Miltary Spec. Thimbles are used in combination with wire rope clips, wire rope to make a secure wire loop. These are high quality clips, precision cast from 316 stainless.

Meets mil spec an100 (air force/navy) 316 stainless steel
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[]
[] []
[] []
Quantity Discounts
Most parts ordered in quantity will be automaticaly discounted in your cart. 10+ items 5% off, 25+ items 10% off, 100+ items, 15% off. For larger orders get great pricing by contacting us.
[]


S0124-AN01 Military Spec. Thimble 100-03 3163/32 $0.66 /Each
S0124-AN03 Military Spec. Thimble 100-04 3161/8 $0.84 /Each
S0124-AN04 Military Spec. Thimble 100-05 3165/32 $1.08 /Each
S0124-AN05 Military Spec. Thimble 100-06 3163/16 $1.21 /Each
S0124-AN07 Military Spec. Thimble 100-08 3161/4 $1.82 /Each
S0124-AN08 Military Spec. Thimble 100-10 3165/16 $2.92 /Each
S0124-AN10 Military Spec. Thimble 100-12 3163/8 $6.55 /Each
S0124-AN12 Military Spec. Thimble 100-14 3167/16 $10.45 /Each
S0124-AN13 Military Spec. Thimble 100-16 3161/2 $13.53 /Each
In Stock - Usually ships in 1-2 business days.
Learn More:  Product Details | Dimensions
DIMENSIONS
part diagram ITEM SIZE A B C WT
S0124-AN01 100-C3 3/32" 0.09" 0.35" 0.70" 0.15/100
S0124-AN03 100-C4 1/8" 0.14" 0.35" 0.70" 0.43/100
S0124-AN04 100-C5 5/32" 0.17" 0.40" 0.80" 0.60/100
S0124-AN05 100-C6 3/16" 0.20" 0.50" 1.00" 0.98/100
S0124-AN07 100-C8 1/4" 0.27" 0.70" 1.40" 1.50/100
S0124-AN08 100-C10 5/16" 0.33" 0.90" 1.80" 3.50/100
S0124-AN10 100-C12 3/8" 0.39" 1.00" 2.00" 8.50/100
S0124-AN12 100-C14 7/16" 0.45" 1.13" 2.25" 9.30/100
S0124-AN13 100-C16 1/2" 0.52" 1.25" 2.50" 10.50/100

DETAILS

  • 316 STAINLESS STEEL
[]

$30 minimum order required
