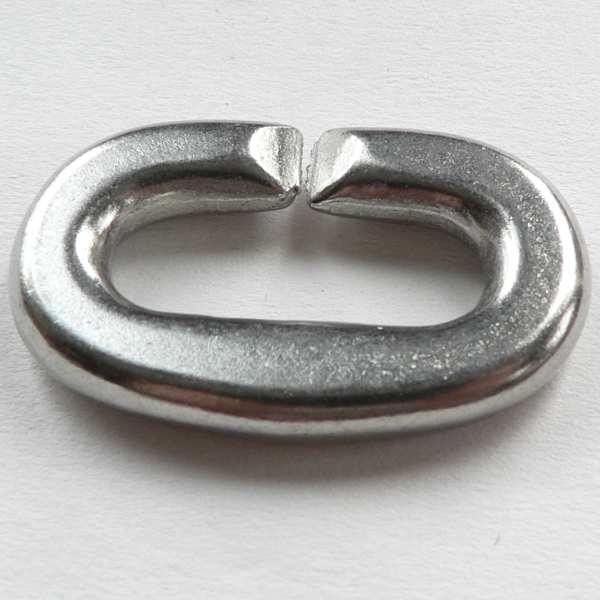

C Connect Link

Model: S0165-00xx

The "C" Connect link -- also known as a C Link -- is an open link with a gap on one side -- this allows webbing, strapping, rope and elastic cord to be looped through the an indvidual link, and married to another link. Reasonably strong, with a polish finish. Quick connect and disconnect are achieved by turning links 90 degrees to each other. Sold individually.

This part is precision cast from 304 Stainless Steel.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[]
[] []
[] []
Quantity Discounts
Parts ordered in quantity will be automatically discounted in your cart: 10+ = 5% off, 25+ = 10% off, 100+ = 15% off.
[]


S0165-0005 C Connect Link 3/16 $2.32 /Each
S0165-0006 C Connect Link 1/4 $3.02 /Each
S0165-0008 C Connect Link 5/16 $5.44 /Each
S0165-0010 C Connect Link 3/8 $10.07 /Each
S0165-0013 C Connect Link 1/2 $21.66 /Each
S0165-0016 C Connect Link 5/8 $31.61 /Each
S0165-0020 C Connect Link 3/4 $51.65 /Each
Quantity Pricing Reflected in Shopping Cart!
Learn More:  Product Details | Dimensions
DIMENSIONS
part diagram ITEM A B C WLL WT
S0165-0005 3/16" 0.31" 0.75" 160 0.03
S0165-0006 1/4" 0.37" 0.87" 300 0.04
S0165-0008 5/16" 0.43" 1.25" 400 0.09
S0165-0010 3/8" 0.56" 1.50" 500 0.18
S0165-0013 1/2" 0.75" 2.00" 700 0.38
S0165-0016 5/8" 0.87" 2.50" 1,200 0.70
S0165-0020 3/4" 1.12" 3.00" 2,000 1.10

DETAILS

  • 304 Stainless Steel
[]

$30 minimum order required
